Core Applications


The Core Applications page supports customer use of our 65xx intellectual property (IP). Here you will find example applications of our cores in current production use.


Consumer

Nuvoton
Speech ⁄ MIDI Microcontrollers

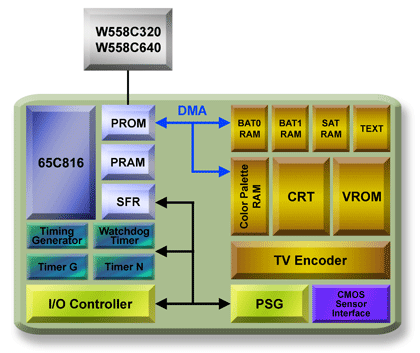

TV Edutainment Microcontrollers – W55 Family

Key Features
  • Highly integrated, single chip solution (W55V91/2/3/4)
  • 16-bit 65C816 MCU core
  • 27MHz system clock
  • Up to 1M byte internal ROM with flexible program/graphics mapping
  • Sprite/Background/Color palette
  • General purpose I/O
    		•  Benefits
  • Lower chip cost and production cost
  • High performance
  • Uses low cost 27MHz crystals
  • Allow optimized program/content balance
  • Colorful screen and animated objects for game play
  • Support contact switches and joystick user interface
    		•

    Applications
  • TV Toys
  • Personal Video Player
    		•


    Automotive

    Micronas
    16-Bit Automotive Controller Area Network (CAN) Controller
    Micronas CDC 1607F-E
    Micronas CDC 1631F-E
    Micronas CDC 1651F-E
